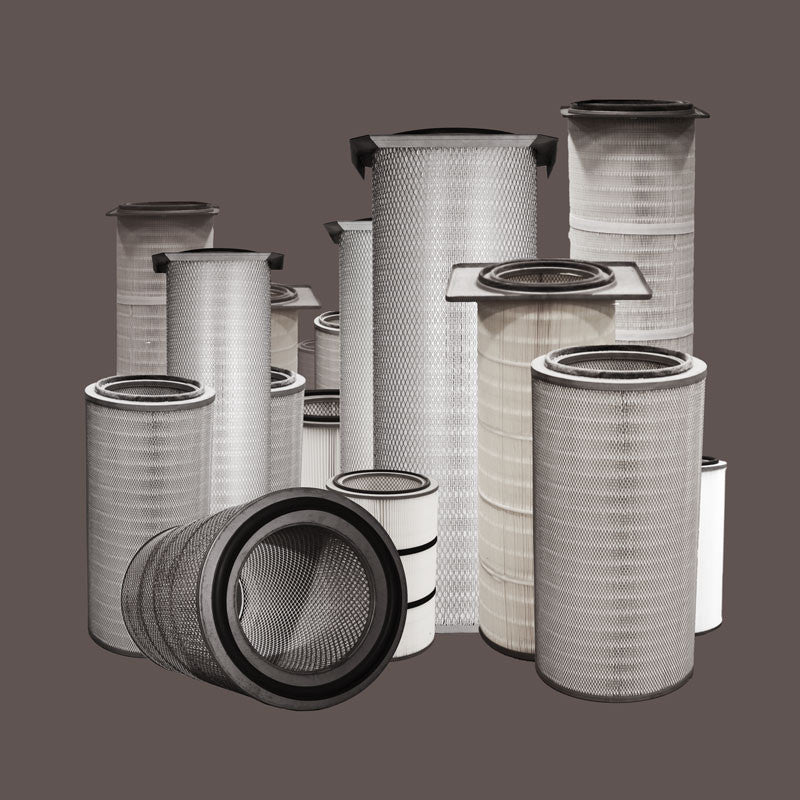

NF20023 ~ Clark ~ Dust Collector Cartridge Filter

$108.62

$125.33

NF20023 Specifications

Original Manufacturer

Clark

Model Number

NF20023

Dimensions and Design

7.93 x 16 x 3.61, Outside diameter:7.9, Length: 16, Inside diameter: 3.6, Top: open, Bottom: closed, Shape: round, Media Square ft.: 84.89 ~ Bolt Hole OCB 0.675"

Filter Media Specs

DCF Cellulose / Polyester 80/20 Blend (Spunbond or Nanofiber variations availible on request.)

Max Temp Rating 180 F.
MERV 11
Caliper 0.29
Mullen Strength
  Dry 51.8 PSI
  West 36.6
